Product description Epson EB-685W/3LCD/3500lm/WXGA/HDMI/LAN
| EKO produkt podle parametru EU | Ano |
| Image format | Widescreen - 16:10 |
| Konektor S - video | Ne |
| USB connector | Yes |
| Component video | No |
| Kompozitní video | Ne |
| HDMI connector | Yes |
| Speakers | Yes |
| Spotřeba energie (W) | 300 |
| Výstup VGA | Ne |
| Výstup DVI | Ne |
| Konektor RJ45 | Ano |
| Exact weight (kg) | 5,7 |
| HDMI (počet) | 3 ks |
| Značka a model | Epson EB-685W |
| Technologie | 3LCD |
| Přesná svítivost (ANSI) | 3500 |
| Svítivost (ANSI) | od 3 100 do 4 100 |
| Kontrast | nad 10 000:1 |
| Nativní rozlišení | 1280 x 800 (WXGA) |
| Podporované rozlišení (max) | 1280x800 (WXGA) |
| Projektor do školy | Ano |
| Max. velikost obrazu (palce) | 100" |
| Přesná živ lampy v ECO (hodin) | 10000 |
| Životnost lampy v ECO (hodin) | do 10 000 |
| Wi-Fi | Volitelně |
| Hmotnost (kg) | nad 5 |
| Hlučnost (dB, běžný provoz) | 35 |
| 3D technologie | Ne |
| Krátká projekce | Ultrakrátká vzdálenost |
| Interaktivní projektor | Ne |
| WWW_MORE_DETAILS_SCRIPT | Script description |
| Barva | Bílá |

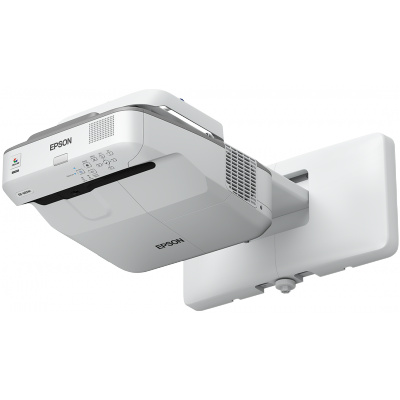

EB-685W
TECHNOLOGY
Projection System: 3LCD Technology, Ultra short distance
LCD Panel: 0.59 inch with D9
Color Light Output: 3.500 lumens - 2.900 lumens (economic) in accordance with ISO IDMS15 standard.4
White light output:3.500 lumens - 2.900 lumens (economic) in accordance with ISO 21118:2012
Resolution: WXGA, 1280 x 800, 16:10
Aspect Ratio: 16:10
Contrast Ratio: 14000:1
Native Contrast: 300:1
Lamp: 250 W, 5.000 h Lifespan, 10.000 h Lifespan (in power-saving mode), 9.000 h Lifespan (in power-saving mode)
Keystone Correction:Manual Vertical: ± 3°, Manual Horizontal ± 3°
Video Editing:10 bits
2D Vertical Refresh Rate:100 Hz - 120 Hz
Color Reproduction:Up to 1.07 billion colors
OPTICS
Projection Ratio:0.28:1
Zoom:Digital, Factor: 1 - 1.35
Lens:Optics
Projected Image Diagonal:60 inches - 100 inches
Projection Distance - Wide:0.4 m (60-inch display)
Projection Distance - Tele:0.6 m (100-inch display)
Focal Length:3.76 mm
Focus:Manual
Shift: 6:1
CONNECTIVITY OPTIONS
USB Display Function:3-in-1: image / mouse / sound
Interface:USB 2.0 type A, USB 2.0 type B, RS-232C, HDMI input (3x), Composite input, RGB input (2x), RGB output, Audio output, stereo mini-jack connector, Audio input, stereo mini-jack connector (3x), microphone input, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11 b/g/n (optional), VGA input (2x), VGA output, MHL
Smart Device Connection:Ad-hoc / Infrastructure
ADVANCED FEATURES
Security:Kensington lock, Password protection, Security cable slot, Wireless LAN unit lock, Wireless LAN security, Password protection
2D Color Modes:Dynamic, Cinema, Presentation, sRGB, Blackboard
Features and Functions:Automatic brightness adjustment, Automatic input signal selection, Built-in speaker, CEC standard compatible, Customizable user logo, Digital zoom, Direct power on/off function, Visualizer compatible, Dynamic lamp control, Easy OSD menu presets, Home screen, Long-life lamp, Split screen function, Wireless LAN compatible
Interactivity:No
Color Modes:Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard
Projector control:via: AMX, Crestron, Control4
GENERAL INFORMATION
Power Consumption:354 W, 310 W (economy), 0.39 W (standby mode)
Power Supply:AC 220 V - 240 V, 50 Hz - 60 Hz
Product Dimensions:367 x 400 x 149 mm (width x depth x height)
Product Weight:5.7 kg
Max. noise level :Normal mode: 35 dB (A) - Quiet mode: 30 dB (A) - Eco2: 29 dB (A)
Temperature :Operation 5° C - 35° C, Storage -10° C - 60° C
Humidity :Operation 20% - 80%, Storage 10% - 90%
Included software :EasyMP Monitor, EasyMP Multi PC Projection
Accessories :Air filter, Connection and control unit, Document camera, External speaker, Extension USB cable, Wireless network unit
Compatible operating systems :Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Windows 10, Windows 8, Windows 8.1
Speakers: 16 W
Package contents: Manual on CD, Power cable, Quick start guide, Remote control incl. battery, USB cable, Wall mount, Warranty card
Colour :White/grey
OTHER
TCO Certified: yes
Warranty : 5 years with supplier or 8.000 h, Lamp: 5 years or 1.000 h
TECHNOLOGY
Projection System: 3LCD Technology, Ultra short distance
LCD Panel: 0.59 inch with D9
Color Light Output: 3.500 lumens - 2.900 lumens (economic) in accordance with ISO IDMS15 standard.4
White light output:3.500 lumens - 2.900 lumens (economic) in accordance with ISO 21118:2012
Resolution: WXGA, 1280 x 800, 16:10
Aspect Ratio: 16:10
Contrast Ratio: 14000:1
Native Contrast: 300:1
Lamp: 250 W, 5.000 h Lifespan, 10.000 h Lifespan (in power-saving mode), 9.000 h Lifespan (in power-saving mode)
Keystone Correction:Manual Vertical: ± 3°, Manual Horizontal ± 3°
Video Editing:10 bits
2D Vertical Refresh Rate:100 Hz - 120 Hz
Color Reproduction:Up to 1.07 billion colors
OPTICS
Projection Ratio:0.28:1
Zoom:Digital, Factor: 1 - 1.35
Lens:Optics
Projected Image Diagonal:60 inches - 100 inches
Projection Distance - Wide:0.4 m (60-inch display)
Projection Distance - Tele:0.6 m (100-inch display)
Focal Length:3.76 mm
Focus:Manual
Shift: 6:1
CONNECTIVITY OPTIONS
USB Display Function:3-in-1: image / mouse / sound
Interface:USB 2.0 type A, USB 2.0 type B, RS-232C, HDMI input (3x), Composite input, RGB input (2x), RGB output, Audio output, stereo mini-jack connector, Audio input, stereo mini-jack connector (3x), microphone input, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11 b/g/n (optional), VGA input (2x), VGA output, MHL
Smart Device Connection:Ad-hoc / Infrastructure
ADVANCED FEATURES
Security:Kensington lock, Password protection, Security cable slot, Wireless LAN unit lock, Wireless LAN security, Password protection
2D Color Modes:Dynamic, Cinema, Presentation, sRGB, Blackboard
Features and Functions:Automatic brightness adjustment, Automatic input signal selection, Built-in speaker, CEC standard compatible, Customizable user logo, Digital zoom, Direct power on/off function, Visualizer compatible, Dynamic lamp control, Easy OSD menu presets, Home screen, Long-life lamp, Split screen function, Wireless LAN compatible
Interactivity:No
Color Modes:Blackboard, Dynamic, Presentation, Sports, sRGB, Theatre, Whiteboard
Projector control:via: AMX, Crestron, Control4
GENERAL INFORMATION
Power Consumption:354 W, 310 W (economy), 0.39 W (standby mode)
Power Supply:AC 220 V - 240 V, 50 Hz - 60 Hz
Product Dimensions:367 x 400 x 149 mm (width x depth x height)
Product Weight:5.7 kg
Max. noise level :Normal mode: 35 dB (A) - Quiet mode: 30 dB (A) - Eco2: 29 dB (A)
Temperature :Operation 5° C - 35° C, Storage -10° C - 60° C
Humidity :Operation 20% - 80%, Storage 10% - 90%
Included software :EasyMP Monitor, EasyMP Multi PC Projection
Accessories :Air filter, Connection and control unit, Document camera, External speaker, Extension USB cable, Wireless network unit
Compatible operating systems :Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Windows 10, Windows 8, Windows 8.1
Speakers: 16 W
Package contents: Manual on CD, Power cable, Quick start guide, Remote control incl. battery, USB cable, Wall mount, Warranty card
Colour :White/grey
OTHER
TCO Certified: yes
Warranty : 5 years with supplier or 8.000 h, Lamp: 5 years or 1.000 h
