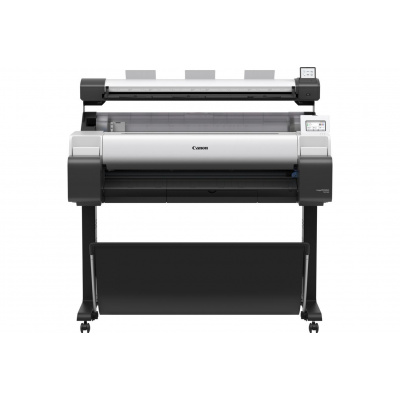

Product description Canon imagePROGRAF TM-340 6248C003 inkoustová velkoformátová tiskárna
| Automatic two-sided printing (Duplex) | No |
| Maximum number of input trays | 1 |
| Print technology | Inkjet |
| Maximum print/media format | A1+ (610 mm) |
| Printer Interface | USB+LAN+WIFI |
| Maximum print speed (A4 per minute) | 39 |
| Standard number of input trays | 1 |
| Actual printer resolution (in DPI) | 2400x1200 |
| Internal memory | 2 GB |
| Multifunction | No |
| Printing color | Color |
| Refill system | Separate refills |
Achieve a new level of printing performance with the sustainable 36" imagePROGRAF TM-340 printer, which offers quieter operation, more intuitive features, and outstanding image quality for AEC offices, retail, and education.
Detailed Specifications
Printer Technology
Printer type: 36 inches, 5 colors
Printing technology: Canon Bubblejet on Demand inkjet printing, 6 colors, integrated type (6 chips per print head × 1 print head)
Print resolution: 2,400 × 1,200 dpi
Number of nozzles: Total: 15,360 nozzles MBK: 5,120 nozzles BK, C, M, Y: each with 2,560 nozzles
Line accuracy: ±0.1% or less
Nozzle position: 1,200 dpi × 2 lines
Ink droplet size: Minimum 5 pl per color
Ink tank capacity: Starter ink: 300 ml (80 ml for MBK, 4× 55 ml for BK, C, M, Y), sales ink: 55 ml (MBK, BK, C, M, Y)
Ink type: Pigment inks: 5 colors MBK / BK / C / M / Y
Compatibility with operating systems:
32-bit versions: Windows 7, Windows 8.
1, Windows 1064-bit versions: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7 to macOS 13
Standard Interface:
USB A Port: not available
USB Type B Port: high-speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
Memory
Standard memory: 2 GB
Expansion slot: no
Hard drive: Not available
Print speed
CAD Drawings
Standard Paper (A1)
0:21 (fast economical) 2.7 pages./min
Plain paper (A0)
0:41 (fast economic)
0:42 (fast mode)
1:25 (standard)
Posters
Standard paper (A0)
0:43 (fast economic)
0:43 (fast)
1:25 (standard)
Heavy coated paper (A0)
1:42 (fast)
3:10 (standard)
Media Work
Media Feeding and Output:
Roll paper: one roll, top loading, front output
Cut sheets: top loading, front output (manual feeding using a media locking lever)
Media width:
Paper roll: 203.2 to 917 mm
Cut sheets: 210 to 917 mm
Media thickness: Roll/sheets: 0.07–0.8 mm
Maximum media roll diameter: 150 mm
Core size of the roll: Inner core diameter: 2"/3" (optional)
Power and Operational Requirements
Power Supply: 100 to 240 V AC (50–60 Hz)
Dimensions and weight:
Physical dimensions and weight (W x D x H):
Main unit with stand
1,285 × 868 × 1,060 mm (control panel not tilted up/open basket)
1,285 × 756 × 1,060 mm (control panel not tilted up/closed basket)
59.2 kg (including roll holder set, without ink and print head)
Package dimensions and weight: Printer (main unit with stand and pallet): 1,462 × 912 × 801 mm, 100 kg
Package Contents: Printer, printer stand, 1 print head, power cable, 1 set of basic ink tanks, installation guide, safety/environmental standards leaflet, address list for large format printing in Europe, information sheet with important instructions, basic guide for setting up the printer stand, notice about PosterArtist WEB software
Options
Optional items:
Roll holder 2/3": RH2-35
IC card reader holder: RA-02
Consumables
Ink tank: M: PFI-031 (55 ml), MBK/BK/C/Y: PFI-030 (55 ml)
Print head: PF-06
Cutter blade: CT-08
Waste ink tank: MC-31
