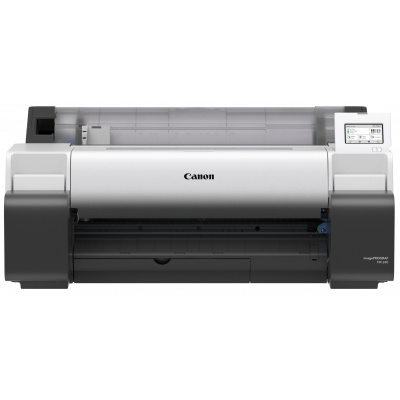

Product description Canon imagePROGRAF TM-240 6242C003 inkoustová velkoformátová tiskárna
| Automatic two-sided printing (Duplex) | No |
| Maximum number of input trays | 1 |
| Print technology | Inkjet |
| Maximum print/media format | A1+ (610 mm) |
| Printer Interface | USB+LAN+WIFI |
| Maximum print speed (A4 per minute) | 39 |
| Standard number of input trays | 1 |
| Actual printer resolution (in DPI) | 2400x1200 |
| Internal memory | 2 GB |
| Multifunction | No |
| Printing color | Color |
| Refill system | Separate refills |
Achieve a new level of printing performance with the sustainable 24" imagePROGRAF TM-240 printer, which offers quieter operation, more intuitive features, and outstanding image quality for AEC offices, retail, and education.
SPECIFICATIONS
Printer Technology
Printer Type: 24 inches, 5 colors
Printing Technology: Canon Bubblejet on Demand inkjet printing, 6 colors, integrated type (6 chips per print head × 1 print head)
Print Resolution: 2,400 × 1,200 dpi
BK, C, M, Y: each with 2,560 nozzles
Type of ink: Pigment inks: 5 colors MBK / BK / C / M / Y
Compatibility with operating systems:
32-bit versions: Windows 7, Windows 8.
64-bit versions: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7 to macOS 13
Other supported job submission protocols: Apple AirPrint
Printer languages: HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (sending only via FTP)
Standard Interface:
USB A Port: not available
USB Type B Port: high-speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
Memory
Standard memory: 2 GB
Expansion slot: no
Hard drive: Not available
Print speed
CAD Drawings:
Plain Paper (A1):
0:23 (fast economical)
0:25 (fast)
0:51 (standard)
Posters:
Regular paper (A1)
0:25 (fast economic)
0:25 (fast)
0:49 (standard)
Thick paper with surface finish (A1)
0:56 (fast)
1:45 (standard)
Media work
Media Feeding and Output:
Roll paper: one roll, top loading, front output
Cut sheets: top loading, front output (manual feeding using a media locking lever)
Media Width:
Roll paper: 203.2 to 610 mm
Cut sheets: 210 to 610 mm
Maximum printable length:
Roll paper: 18 m (depends on the operating system and application)
Cut sheets: 1.6 m
Maximum media roll diameter: 150 mm
Core size of the roll: Inner diameter of the roll core: 2"/3" (optional)
Power and Operational Requirements
Power Supply: 100 to 240 V AC (50–60 Hz)
Dimensions and Weight
Physical dimensions and weight (w × d × h):
Main unit + stand + basket (SD-24)
978 × 868 × 1,060 mm (control panel not tilted up/open basket)
978 × 756 × 1,060 mm (control panel not tilted up/closed basket)
50.9 kg (including roll holder set, without ink and print head)
Package Dimensions and Weight:
Printer (main unit with pallet): 1,152 × 912 × 679 mm, 71 kg
Stand + basket (SD-24): 1,058 × 826 × 270 mm, 20 kg
Package Contents: Printer, 1 print head, power cable, 1 set of basic ink cartridges, installation guide, safety instructions/environmental standards leaflet, address sheet for large format printing in Europe, information sheet with important instructions, notice about PosterArtist WEB software
Consumables
Ink tank: M: PFI-031 (55 ml), MBK/BK/C/Y: PFI-030 (55 ml)
Print head: PF-06
Cutter blade: CT-08
Waste ink tank: MC-31
