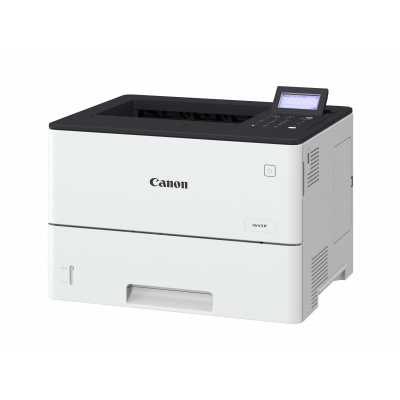

Product description Canon i-SENSYS X 1643P 3631C002 laser all-in-one printer + toner
| Automatic two-sided printing (Duplex) | Yes |
| Maximum number of input trays | 5 |
| Print technology | Laser |
| Maximum print/media format | A4 |
| Printer Interface | USB + LAN |
| Maximum print speed (A4 per minute) | 43 |
| Standard number of input trays | 2 |
| Actual printer resolution (in DPI) | 1200x1200 |
| Internal memory | 1 GB |
| Multifunction | No |
| Printing color | Black and white |
| Refill system | Separate refills |
A black and white A4 desktop printer offering flexible configuration to achieve maximum efficiency.
Printing Machine
Printing Method: Black and white laser beam printing
Print Resolution: Up to 1,200 × 1,200 dpi
Print Speed:
Single-sided (A4): up to 43 pages./min
Double-sided (A4): up to 36 images./min
Single-sided (A5 landscape): up to 65.2 pages./min
Heating time: Approx. 30 seconds or less from power on (default); Approx. 3 seconds or less from power on (quick mode)
First print time: Approx. 5.7 seconds
Recommended monthly print volume: 2,000 to 7,500 pages per month
Workload: Max. 150,000 pages per month
Advanced Printing Features:
Secure Print (Requires accessory – SD Card-C1)
Print from USB Memory (JPEG/TIFF/PDF/XPS)
Barcode Printing (Requires accessory – Barcode Printing Kit-F1)
Google Cloud Print support
iOS: AirPrint, Canon PRINT Business app
Android: Mopria certified, Canon Print Service plug-in, Canon PRINT Business app
Media Handling
Paper Input (Standard): 550-sheet cassette; 100-sheet multipurpose tray
Paper Input (Optional): 3 x 550-sheet cassettes
Paper Output: 150-sheet face-down capacity
Media Types: Plain paper, heavy paper, recycled paper, colored paper, bond paper, label, envelope, postcard
Media Sizes:
Cassette (Standard):
A4, B5, A5, A5 (landscape), A6, LTR, LGL, EXE, STMT, FLS, K16
Custom size – width: 105.0 to 216.0 mm, length: 148.0 to 355.6 mm
Multipurpose Tray:
A4, B5, A5, A5 (landscape), A6, LTR, LGL, EXE, STMT, FLS, K16, envelopes
(COM10, Monarch, DL, ISO-C5), index cards (3" × 5")
Custom size – width: 76.2 to 216.0 mm, length: 127 to 355.6 mm
Cassette (Optional):
A4, B5, A5, A5 (landscape), A6, LTR, LGL, EXE, STMT, FLS, K16
Custom size – width: 105.0 to 216.0 mm, length: 148.0 to 355.6 mm
Media Weights:
Cassette: 60 to 120 g/m2
Multipurpose Tray: 60 to 199 g/m2
Duplex Printing:
Automatic
Cassette (Standard and Optional): A4, LTR, LGL, FLS
Custom size – width: 210 to 216.0 mm, length: 279.4 to 355.6 mm
60 to 120 g/m2
General Features
Power Consumption:
Maximum: approximately 1,390 W or less
During operation: approx. 600 W or less
Standby mode: approximately 10.1 W or less
Sleep mode: approximately 1.2 W or less
Typical Electricity Consumption (TEC): 0.52 kWh/week
Noise Level:
In operation: 69 dB
Standby mode: silent
Dimensions (W × D × H): 409 × 376 × 275 mm
Weight: Approx. 11.5 kg
Control Panels: LCD display with 5 lines, 5 LED indicators (Online, Ready, Message, Job, and Energy saver), buttons, numeric keypad with 10 keys
Driver
Memory: 1 GB
Fonts: 105 PCL fonts, 136 PS fonts
Interface and Connectivity: USB 2.0 High-Speed, 10BASE-T/100BASE-TX/1000BASE-T
Software and Printer Management:
Remote User Interface (RUI), Department ID Management, iW Enterprise Management Console: server software for centralized management of a device group, eMaintenance: built-in RDS allows for providing remote eMaintenance services such as meter reading status, automatic consumables management, and remote diagnostics. Compatible with the uniFLOW system using the uniFLOW Login Device Client for SFP MEAP.
Compatible operating systems: Windows® 10 / Windows® 8.1 / Windows® 7 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012 / Server® 2008R2 / Server® 2008 / Server® 2003R2 / Server® 2003; Mac OS X version 10.9.5 and higher / Mac OS version 10.15 and above; Linux/Citrix
Printing Machine
Printing Method: Black and white laser beam printing
Print Resolution: Up to 1,200 × 1,200 dpi
Print Speed:
Single-sided (A4): up to 43 pages./min
Double-sided (A4): up to 36 images./min
Single-sided (A5 landscape): up to 65.2 pages./min
Heating time: Approx. 30 seconds or less from power on (default); Approx. 3 seconds or less from power on (quick mode)
First print time: Approx. 5.7 seconds
Recommended monthly print volume: 2,000 to 7,500 pages per month
Workload: Max. 150,000 pages per month
Advanced Printing Features:
Secure Print (Requires accessory – SD Card-C1)
Print from USB Memory (JPEG/TIFF/PDF/XPS)
Barcode Printing (Requires accessory – Barcode Printing Kit-F1)
Google Cloud Print support
iOS: AirPrint, Canon PRINT Business app
Android: Mopria certified, Canon Print Service plug-in, Canon PRINT Business app
Media Handling
Paper Input (Standard): 550-sheet cassette; 100-sheet multipurpose tray
Paper Input (Optional): 3 x 550-sheet cassettes
Paper Output: 150-sheet face-down capacity
Media Types: Plain paper, heavy paper, recycled paper, colored paper, bond paper, label, envelope, postcard
Media Sizes:
Cassette (Standard):
A4, B5, A5, A5 (landscape), A6, LTR, LGL, EXE, STMT, FLS, K16
Custom size – width: 105.0 to 216.0 mm, length: 148.0 to 355.6 mm
Multipurpose Tray:
A4, B5, A5, A5 (landscape), A6, LTR, LGL, EXE, STMT, FLS, K16, envelopes
(COM10, Monarch, DL, ISO-C5), index cards (3" × 5")
Custom size – width: 76.2 to 216.0 mm, length: 127 to 355.6 mm
Cassette (Optional):
A4, B5, A5, A5 (landscape), A6, LTR, LGL, EXE, STMT, FLS, K16
Custom size – width: 105.0 to 216.0 mm, length: 148.0 to 355.6 mm
Media Weights:
Cassette: 60 to 120 g/m2
Multipurpose Tray: 60 to 199 g/m2
Duplex Printing:
Automatic
Cassette (Standard and Optional): A4, LTR, LGL, FLS
Custom size – width: 210 to 216.0 mm, length: 279.4 to 355.6 mm
60 to 120 g/m2
General Features
Power Consumption:
Maximum: approximately 1,390 W or less
During operation: approx. 600 W or less
Standby mode: approximately 10.1 W or less
Sleep mode: approximately 1.2 W or less
Typical Electricity Consumption (TEC): 0.52 kWh/week
Noise Level:
In operation: 69 dB
Standby mode: silent
Dimensions (W × D × H): 409 × 376 × 275 mm
Weight: Approx. 11.5 kg
Control Panels: LCD display with 5 lines, 5 LED indicators (Online, Ready, Message, Job, and Energy saver), buttons, numeric keypad with 10 keys
Driver
Memory: 1 GB
Fonts: 105 PCL fonts, 136 PS fonts
Interface and Connectivity: USB 2.0 High-Speed, 10BASE-T/100BASE-TX/1000BASE-T
Software and Printer Management:
Remote User Interface (RUI), Department ID Management, iW Enterprise Management Console: server software for centralized management of a device group, eMaintenance: built-in RDS allows for providing remote eMaintenance services such as meter reading status, automatic consumables management, and remote diagnostics. Compatible with the uniFLOW system using the uniFLOW Login Device Client for SFP MEAP.
Compatible operating systems: Windows® 10 / Windows® 8.1 / Windows® 7 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012 / Server® 2008R2 / Server® 2008 / Server® 2003R2 / Server® 2003; Mac OS X version 10.9.5 and higher / Mac OS version 10.15 and above; Linux/Citrix
! The USB connecting cable is not included in the package !
