Product description ASUS PN54 Ryzen 90MR01D2-M000E0 Computer Mini, 7260, 2*M.2 Slot
| Výrobce | AMD |
| Typ CPU | AMD Ryzen 7 |
| Přesný model | R7-260 |
| Kapacita přesná (GB) | bez disku |
| DisplayPort connector | Yes |
| DP number | 2 |
| HDMI connector | Yes |
| Paměť - velikost (GB) | bez RAM |
| Počet paměti RAM | Bez RAM |
| Typ paměti | DDR5 |
| Rozměry paměti | SODIMM |
| Paměť - počet slotů celkem | 2 |
| Paměť - počet volných slotů | 2 |
| Čtečka karet | Ne |
| Grafická karta | integrovaná |
| Konektor RJ45 | Ano |
| Bluetooth | Ano |
| Wi-Fi | Ano |
| Provedení | Mini PC |
| Operační systém | bez operačního systému |
| Ethernet | 2,5 Gbs |
| Počet LAN portů | 2 |
| Zabezpečení zámkem | Kensington Lock |
| USB 3.x (přední) | 2 |
| USB 3.x Type-C (přední) | 1 |
| USB 2.0 (zadní) | 1 |
| USB 3.x (zadní) | 1 |
| USB 4 / Thunderbolt 4 (zadní) | 1 |
| HDMI (počet) | 1 |
| Audio 3,5mm jack | Ano |
| Wi-Fi standard | Wi-Fi 7 802.11be |
| Barva | Černá |
ASUS ExpertCenter PN54-S1
OS: No OS (compatible with W11 Pro and W11 Home)
CPU: AMD Ryzen 7 260
Chipset: Integrated
Graphics Card: AMD Radeon 700M Graphics
Memory Support: 2 x SO-DIMM, DDR5-5600HMz, supporting 8GB to 32GB
Storage Support: 2 x M.2 2280 PCIe Gen4x4, supporting 256G~2TB NVMe™ SSD
Wireless Network: MTK Wi-Fi 7, MTK Wi-Fi 6E, Bluetooth
Interface

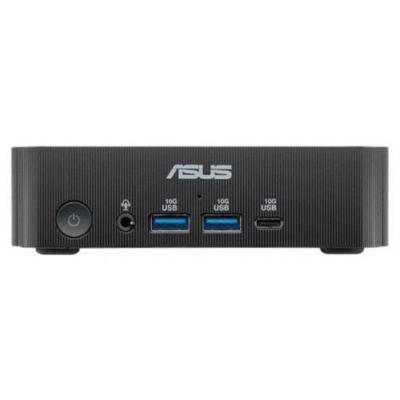

Front Side:
1 x Power Button
1 x USB 3.2 Gen2 Type-C (10G)
2 x USB 3.2 Gen2 Type-A (10G)
1 x Audio Jack (Line out/Mic in/Headphone out)
Side:
1 x Kensington lock slot
Rear:
1 x USB 4 Type C (support DP1.4a and PD-in 100W )(max. speed 40G/ output power 5V 3A)
1 x USB 3.2 Gen2 Type-A (10G)
1 x USB 2.0 Type-A (5G)
1 x HDMI 2.1(FRL8)
2 x DisplayPort 1.4(HBR3) (max. speed 8.1G)
2 x 2.5G RJ45 LAN
1 x DC in
Power: 20Vdc, 6A, 120.0W Power Adapter
Dimensions: 130 x 130 x 34mm (0.6L)
OS: No OS (compatible with W11 Pro and W11 Home)
CPU: AMD Ryzen 7 260
Chipset: Integrated
Graphics Card: AMD Radeon 700M Graphics
Memory Support: 2 x SO-DIMM, DDR5-5600HMz, supporting 8GB to 32GB
Storage Support: 2 x M.2 2280 PCIe Gen4x4, supporting 256G~2TB NVMe™ SSD
Wireless Network: MTK Wi-Fi 7, MTK Wi-Fi 6E, Bluetooth
Interface
Front Side:
1 x Power Button
1 x USB 3.2 Gen2 Type-C (10G)
2 x USB 3.2 Gen2 Type-A (10G)
1 x Audio Jack (Line out/Mic in/Headphone out)
Side:
1 x Kensington lock slot
Rear:
1 x USB 4 Type C (support DP1.4a and PD-in 100W )(max. speed 40G/ output power 5V 3A)
1 x USB 3.2 Gen2 Type-A (10G)
1 x USB 2.0 Type-A (5G)
1 x HDMI 2.1(FRL8)
2 x DisplayPort 1.4(HBR3) (max. speed 8.1G)
2 x 2.5G RJ45 LAN
1 x DC in
Power: 20Vdc, 6A, 120.0W Power Adapter
Dimensions: 130 x 130 x 34mm (0.6L)
