Product description ASUS PN54 AMD AI 90MS02Y1-M00040 Office computer, 5340, 512G SSD, 16G D5, W11 Pro
| Výrobce | AMD |
| Typ CPU | AMD Ryzen AI 5 |
| Generace CPU | AMD Ryzen AI řady 300 |
| Přesný model | AI5-340 |
| Zákl.frekvence jádra CPU (GHz) | 2 |
| Počet jader | 6 |
| Kapacita přesná (GB) | 512GB |
| VESA standard | Yes |
| DisplayPort connector | Yes |
| DP number | 2 |
| HDMI connector | Yes |
| Výkon napájecího zdroje (W) | 120 |
| Paměť - velikost (GB) | 32 |
| Čtečka karet | Ne |
| Grafická karta | integrovaná |
| Výstup mini DisplayPort | Ne |
| Konektor RJ45 | Ano |
| Bluetooth | Ano |
| Wi-Fi | Ano |
| Provedení | Mini PC |
| Typ SSD | M.2 2280 |
| Rozhraní SSD | PCI-Express |
| Operační systém | Windows 11 Pro |
| Ethernet | 2,5 Gbs |
| Počet LAN portů | 2 |
| Zabezpečení zámkem | Kensington Lock |
| HDMI (počet) | 2 ks |
| Modelová řada GPU | AMD Radeon 840M Graphics |
| Max.frekvence jádra CPU (GHz) | 4,8 |
| CPU s podporou AI | Ano |
| Bluetooth verze | 05.IV |
| Wi-Fi standard | Wi-Fi 7 802.11be |
| Barva | Černá |
| NPU - počet TOPs | 50 |
ASUS PN54 ExpertCenter
OS: Win11
CPU: AMD Ryzen AI 5
Chipset: Integrated
Graphics Card: AMD Radeon Graphics
Memory: 32GB x 2
Storage: 256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD
Wireless Data Network:
Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.4 Wireless Card
Wi-Fi 7 (Gig+) 2x2 + Bluetooth® 5.4 Wireless Card
LAN: 2.5G Ethernet

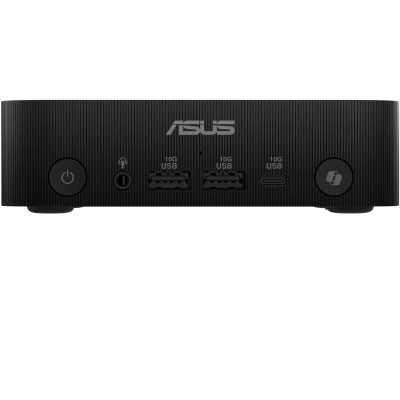

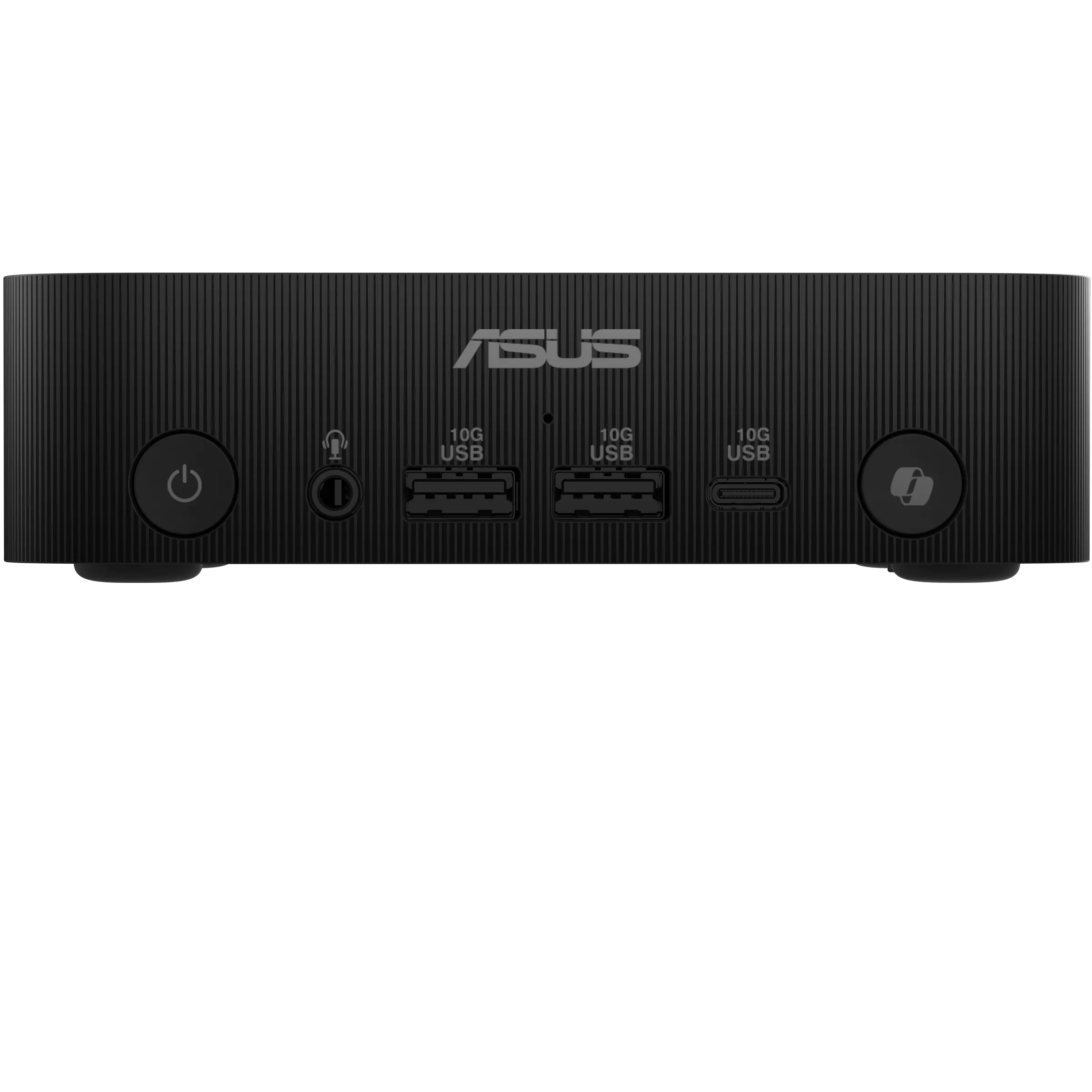

Front I/O Ports:
1 x USB 3.2 Gen2 Type C (10G)
2 x USB 3.2 Gen2 Type A (10G)
1 x Audio Jack (Line out/Mic in/Headphone out/Headset)
1 x Power Button
1 x Copilot Button
1 x Fingerprint Reader
1 x Kensington Lock

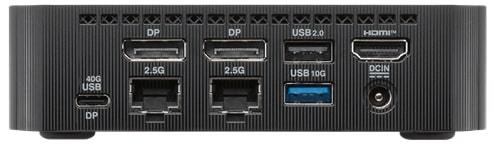

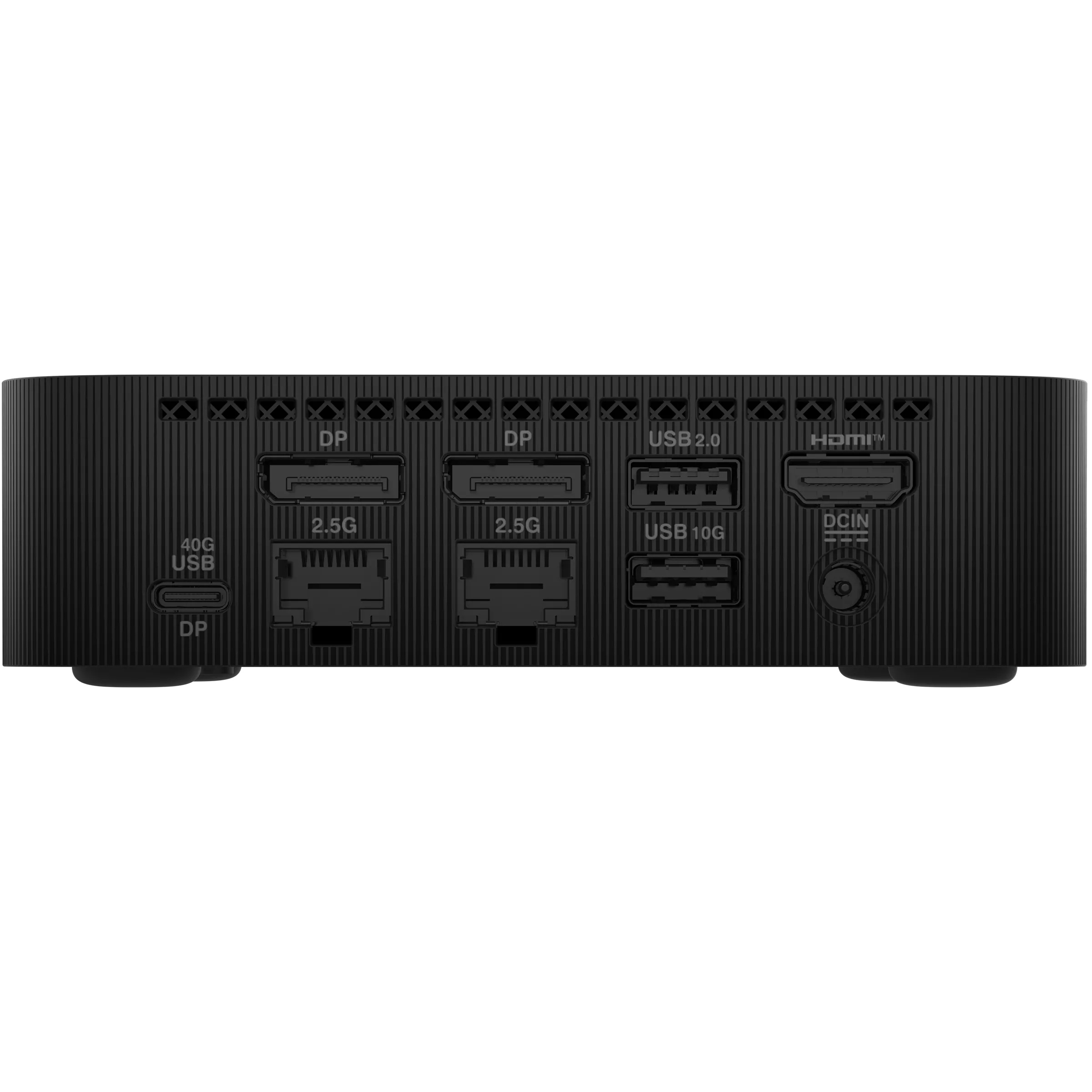

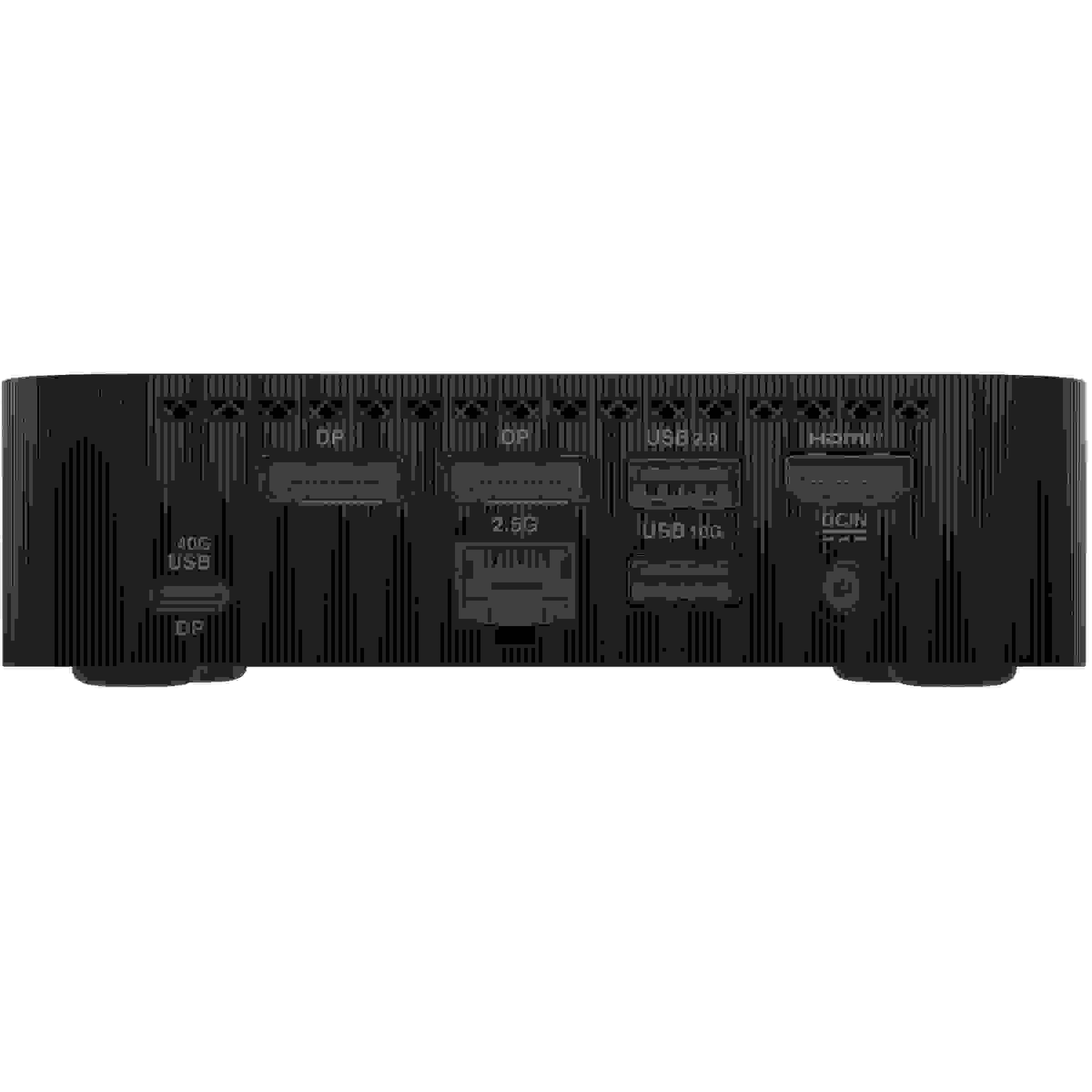

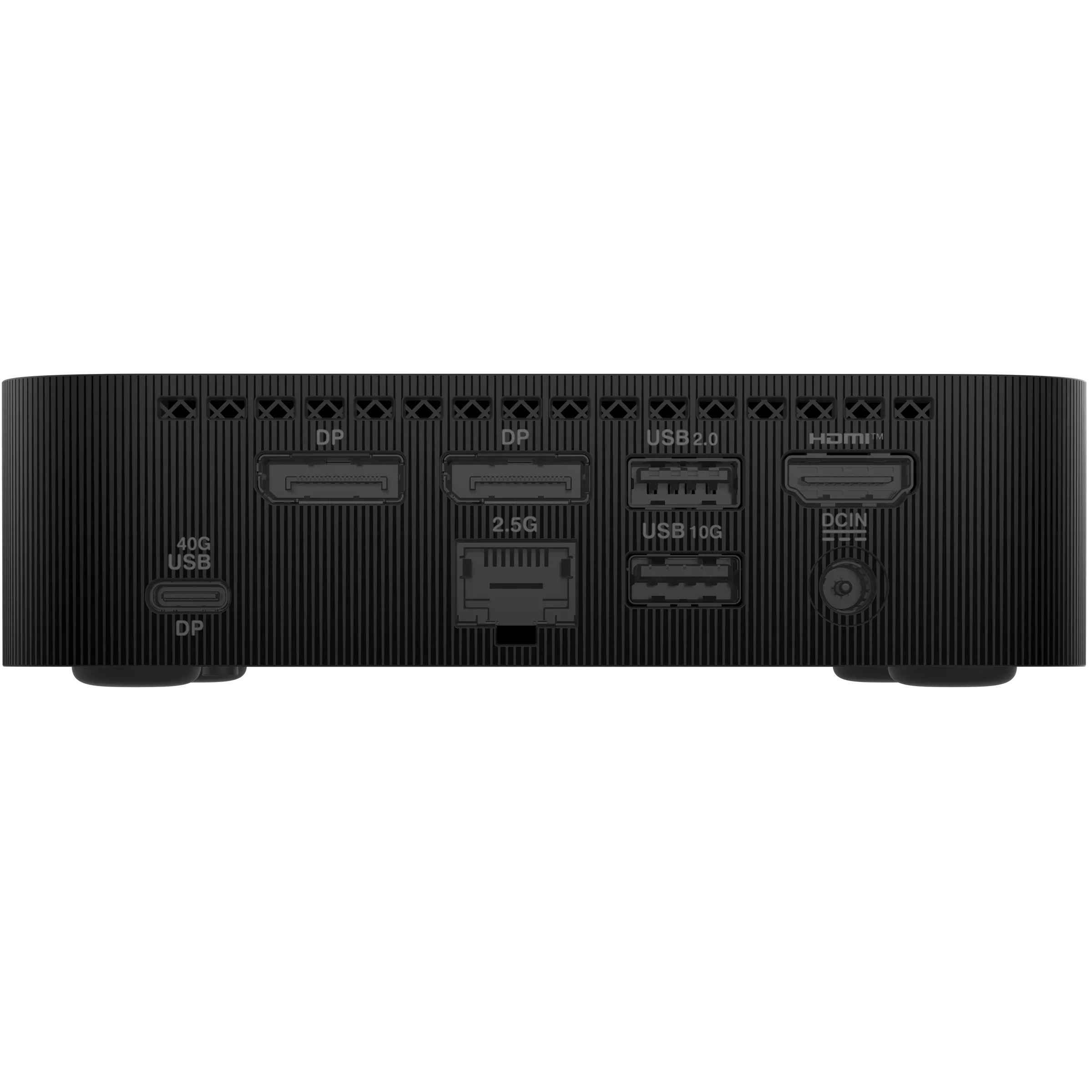

Rear I/O ports:
1 x USB 4 Type C (Supports DP2.1 and PD-in 100W )(max. speed 40G/ output power 5V 3A)
1 x USB 3.2 Gen2 Type A (10G)
1 x USB 2.0 Type A (5G)
1 x HDMI2.1(FRL6)
2 x DisplayPort 1.4(HBR3) (max. speed 8.1G)
1 x 2.5G RJ45 LAN
1 x DC in
1 x USB 4 Type C (Supports DP2.1 and PD-in 100W )(max. speed 40G/ output power 5V 3A)
1 x USB 3.2 Gen2 Type A (10G)
1 x USB 2.0 Type A (5G)
1 x HDMI2.1(FRL6)
2 x DisplayPort 1.4(HBR3) (max. speed 8.1G)
2 x 2.5G RJ45 LAN
1 x DC in
The device does not have a memory card reader.
Speakers: SonicMaster Speaker 2W x 2
Power Supply: 19Vdc, 6.32A, 120W Power Adapter, Power cord only
OS: Win11
CPU: AMD Ryzen AI 5
Chipset: Integrated
Graphics Card: AMD Radeon Graphics
Memory: 32GB x 2
Storage: 256GB~2TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD
Wireless Data Network:
Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.4 Wireless Card
Wi-Fi 7 (Gig+) 2x2 + Bluetooth® 5.4 Wireless Card
LAN: 2.5G Ethernet
Front I/O Ports:
1 x USB 3.2 Gen2 Type C (10G)
2 x USB 3.2 Gen2 Type A (10G)
1 x Audio Jack (Line out/Mic in/Headphone out/Headset)
1 x Power Button
1 x Copilot Button
1 x Fingerprint Reader
1 x Kensington Lock
Rear I/O ports:
1 x USB 4 Type C (Supports DP2.1 and PD-in 100W )(max. speed 40G/ output power 5V 3A)
1 x USB 3.2 Gen2 Type A (10G)
1 x USB 2.0 Type A (5G)
1 x HDMI2.1(FRL6)
2 x DisplayPort 1.4(HBR3) (max. speed 8.1G)
1 x 2.5G RJ45 LAN
1 x DC in
1 x USB 4 Type C (Supports DP2.1 and PD-in 100W )(max. speed 40G/ output power 5V 3A)
1 x USB 3.2 Gen2 Type A (10G)
1 x USB 2.0 Type A (5G)
1 x HDMI2.1(FRL6)
2 x DisplayPort 1.4(HBR3) (max. speed 8.1G)
2 x 2.5G RJ45 LAN
1 x DC in
The device does not have a memory card reader.
Speakers: SonicMaster Speaker 2W x 2
Power Supply: 19Vdc, 6.32A, 120W Power Adapter, Power cord only
