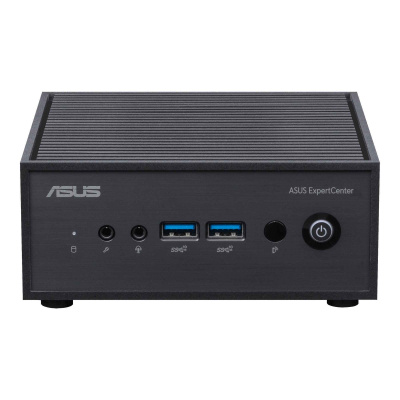

Product description ASUS PN PN42-BBN200MV Mini 90MR00X2-M00020 Computer Mini, N200, without RAM, UHD Xe, without OS, 3R
| Výrobce | INTEL |
| Typ CPU | Intel N-series |
| Generace CPU | Intel N |
| Přesný model | N200 |
| Zákl.frekvence jádra CPU (GHz) | 1 |
| Počet jader | 4 |
| Kapacita přesná (GB) | 64GB a méně |
| VESA standard | Yes |
| DisplayPort connector | Yes |
| DP number | 1 |
| HDMI connector | Yes |
| Výkon napájecího zdroje (W) | 65 |
| Paměť - velikost (GB) | bez RAM |
| Typ paměti | DDR4 |
| Rozměry paměti | SODIMM |
| Paměť Intel Optane | Ne |
| Paměť - počet slotů celkem | 1 |
| Paměť - počet volných slotů | 1 |
| Disk - typ | Bez disku |
| Optická mechanika | Ne |
| Čtečka karet | Ne |
| Grafická karta | integrovaná |
| Thunderbolt 3 (kompatibilní) | Ne |
| eSATA | Ne |
| Výstup VGA | Ano |
| Výstup DVI | Ne |
| Výstup mini/micro HDMI | Ne |
| Výstup mini DisplayPort | Ne |
| Sériový port | Ne |
| Konektor RJ45 | Ano |
| Bluetooth | Ano |
| Wi-Fi | Ano |
| Provedení | Mini PC |
| Operační systém | bez operačního systému |
| Ethernet | 2,5 Gbs |
| Počet LAN portů | 1 |
| USB 2.0 (přední) | 0 ks |
| USB 3.x (přední) | 2 ks |
| USB 3.x Type-C (přední) | 0 ks |
| USB 4 / Thunderbolt 4 (přední) | 0 ks |
| USB 2.0 (zadní) | 3 ks |
| USB 3.x (zadní) | 2 ks |
| USB 3.x Type-C (zadní) | 0 ks |
| USB 4 / Thunderbolt 4 (zadní) | 0 ks |
| HDMI (počet) | 1 ks |
| mini/micro HDMI (počet) | 0 ks |
| DVI (počet) | 0 ks |
| VGA (počet) | 1 ks |
| PS/2 (zadní) | 0 ks |
| Audio 3,5mm jack | Ano |
| Modelová řada GPU | Intel Iris/Intel UHD Graphics |
| Max.frekvence jádra CPU (GHz) | 3,7 |
| CPU s podporou AI | Ne |
| Bluetooth verze | 5.0 |
| Wi-Fi standard | Wi-Fi 6 802.11ax |
| NPU - počet TOPs | Nepodporuje |
* Mini PC ASUS ExpertCenter PN42
Model: ASUS PN42-BBN200MV
Design: Mini PC
Operating System: without OS
Processor: Intel® N200 Processor (max. 3.7 GHz with Intel® Turbo Boost Technology, 6 MB L3 cache, 4 cores, 4 threads)
Chipset: integrated
Hard Drive: no drive
Optical Drive: none
Graphics Card: Intel UHD Graphics
Memory: no memory
Max. size: 16 GB
Number of slots (total / free): 1/1
Network: 2.5G LAN
Wireless Communication: Intel Wi-Fi 6 AX201 (Gig+) (2x2) + BT5.0
Rear connectors:
*2x USB 3.2 Gen2
*3x USB 2.0
*1x DisplayPort 1.4
*1x HDMI 2.0b
*1x 2.5G RJ45 LAN
*1x configurable port (VGA)
*1x DC-in
Front connectors:
*2x USB 3.2 Gen2
*1x Mic
*1x Audio Jack
*1x IR
Memory Card Reader: no
Dimensions: 127.5 x 132 x 57.6 mm
Weight: 1.0 kg
Power Supply: 19Vdc, 3.42A, 65W Power Adapter
Keyboard: no
Mouse: no
Warranty: 3 years
Vesa mount is included in the package.
Three-year ASUS Pick-up and Return premium warranty for business entities and private individuals FREE.
For details, see here:https://www.Asus.com/cz/event/bezstarostny_servis
Manufacturer's website: https://www.Asus.com/displays-desktops/mini-pcs/pn-series/asus-expertcenter-pn42/
You can find the offer of compatible extensions to the standard warranty in the related products.
Tested compatible memories are listed on the manufacturer's website
Tested memory: DDR4
Model: ASUS PN42-BBN200MV
Design: Mini PC
Operating System: without OS
Processor: Intel® N200 Processor (max. 3.7 GHz with Intel® Turbo Boost Technology, 6 MB L3 cache, 4 cores, 4 threads)
Chipset: integrated
Hard Drive: no drive
Optical Drive: none
Graphics Card: Intel UHD Graphics
Memory: no memory
Max. size: 16 GB
Number of slots (total / free): 1/1
Network: 2.5G LAN
Wireless Communication: Intel Wi-Fi 6 AX201 (Gig+) (2x2) + BT5.0
Rear connectors:
*2x USB 3.2 Gen2
*3x USB 2.0
*1x DisplayPort 1.4
*1x HDMI 2.0b
*1x 2.5G RJ45 LAN
*1x configurable port (VGA)
*1x DC-in
Front connectors:
*2x USB 3.2 Gen2
*1x Mic
*1x Audio Jack
*1x IR
Memory Card Reader: no
Dimensions: 127.5 x 132 x 57.6 mm
Weight: 1.0 kg
Power Supply: 19Vdc, 3.42A, 65W Power Adapter
Keyboard: no
Mouse: no
Warranty: 3 years
Vesa mount is included in the package.
Three-year ASUS Pick-up and Return premium warranty for business entities and private individuals FREE.
For details, see here:https://www.Asus.com/cz/event/bezstarostny_servis
Manufacturer's website: https://www.Asus.com/displays-desktops/mini-pcs/pn-series/asus-expertcenter-pn42/
You can find the offer of compatible extensions to the standard warranty in the related products.
Tested compatible memories are listed on the manufacturer's website
Tested memory: DDR4
