Product description ASUS PN ExpertCenter PN53-S5168AD Mini 90MS02H1-M00590 Computer Mini, R5-7535HS, 16GB, 512GB SSD, AMD int, W11P EDU, 3R
| Výrobce | AMD |
| Typ CPU | AMD Ryzen 5 |
| Generace CPU | AMD řady 7000 |
| Přesný model | R5-7535HS |
| Zákl.frekvence jádra CPU (GHz) | 3,3 |
| Počet jader | 6 |
| Model určen pro školy | Ano |
| Kapacita přesná (GB) | 512GB |
| VESA standard | Yes |
| DisplayPort connector | Yes |
| DP number | 1 |
| HDMI connector | Yes |
| Výkon napájecího zdroje (W) | 150 |
| Paměť - velikost (GB) | 16 |
| Typ paměti | DDR5 |
| Rozměry paměti | SODIMM |
| Paměť - počet slotů celkem | 2 |
| Disk - typ | SSD |
| Optická mechanika | Ne |
| Čtečka karet | Ne |
| Grafická karta | integrovaná |
| Thunderbolt 3 (kompatibilní) | Ano |
| eSATA | Ne |
| Výstup VGA | Ne |
| Výstup DVI | Ne |
| Výstup mini/micro HDMI | Ne |
| Výstup mini DisplayPort | Ne |
| Sériový port | Ne |
| Konektor RJ45 | Ano |
| Bluetooth | Ano |
| Wi-Fi | Ano |
| TPM 2.0 | Ano |
| Provedení | Mini PC |
| Typ SSD | M.2 2280 |
| Rozhraní SSD | PCI-Express NVMe |
| Operační systém | Windows 11 Pro Education |
| Ethernet | 2,5 Gbs |
| Počet LAN portů | 1 |
| Klávesnice | Ne |
| Myš | Ne |
| USB 2.0 (přední) | 0 ks |
| USB 3.x (přední) | 2 ks |
| USB 3.x Type-C (přední) | 0 ks |
| USB 4 / Thunderbolt 4 (přední) | 1 ks |
| USB 2.0 (zadní) | 0 ks |
| USB 3.x (zadní) | 3 ks |
| USB 3.x Type-C (zadní) | 1 ks |
| USB 4 / Thunderbolt 4 (zadní) | 0 ks |
| HDMI (počet) | 2 ks |
| mini/micro HDMI (počet) | 0 ks |
| DVI (počet) | 0 ks |
| VGA (počet) | 0 ks |
| PS/2 (zadní) | 0 ks |
| Audio 3,5mm jack | Ano |
| Modelová řada GPU | AMD Radeon 660M Graphics |
| Max.frekvence jádra CPU (GHz) | 4,55 |
| CPU s podporou AI | Ne |
| Bluetooth verze | 05.II |
| Wi-Fi standard | Wi-Fi 6E 802.11ax |
| Barva | Černá |
| NPU - počet TOPs | Nepodporuje |

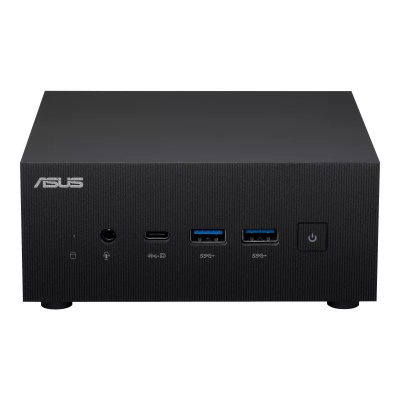

ASUS ExpertCenter PN53
* model designed for schools
* support for four 4K monitors
* reliability 24/7
Operating System: Windows 11 Pro EDU (note, only school OS license)
Processor: AMD Ryzen 5 7535HS (6 cores, 12 threads, 3.3/4.55 GHz, 16 MB cache)
Memory: 16GB DDR5 SO-DIMM
Number of slots: 2x DDR5 SO-DIMM
Maximum memory size: max 64GB
Hard Drive: 512GB NVMe™ SSD
Internal drive bays: 2x M.2 SSD + 1x 2.5" HDD
Optical Drive: No
Card Reader: No
Graphics Card: Integrated AMD Radeon 660M
Audio: Realtek® ALC3251 HD Audio CODEC
Network: 10/100/1000/2500Mb/s, 2.5G LAN
Wireless Communication: WLAN + Bluetooth (Intel® Wi-Fi 6E + Bluetooth® 5.2)
Power Supply: external power adapter 150W
Front/Side Ports:
* 1x USB 4 Type-C (with DP output)
* 2x USB 3.2 Gen1 type-A
* 1x audio jack (microphone/headphone connector)
* 1x Kensington lock
Rear ports:
* 1x USB 3.2 Gen2 type-C (with DP1 output.4)
* 3x USB 3.2 Gen2 type-A
* 2x HDMI 2.1 (up to 4K @ 60 Hz)
* 1x DisplayPort 1.4
* 1x 2.5G RJ45 LAN
* 1x DC-in
* 1x Pad-lock ring
Color: black
Dimensions: 130x120x58mm
Weight: 750g
Accessories:
* power adapter
* power cable
* screw set
* user manual
* warranty card
* VESA mount
Warranty: 3 years
Tested compatible memories are listed on the manufacturer's website
All about AMD processors here: https://amd.atcomp.cz
