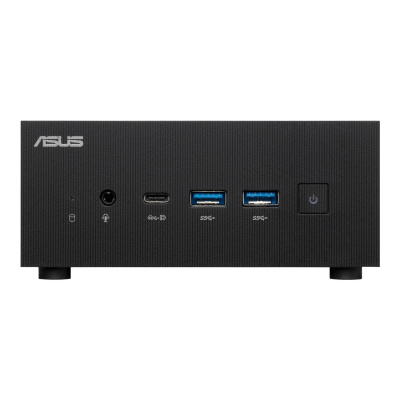

Product description ASUS PN ExpertCenter PN53-BBR777HD Mini 90MR00S2-M001F0 Computer Mini, R7-7735H, without RAM, AMD int, without OS, 3R
| Výrobce | AMD |
| Typ CPU | AMD Ryzen 7 |
| Generace CPU | AMD řady 7000 |
| Přesný model | R7-7735H |
| Zákl.frekvence jádra CPU (GHz) | 3,2 |
| Počet jader | 8 |
| Kapacita přesná (GB) | 64GB a méně |
| VESA standard | Yes |
| DisplayPort connector | Yes |
| DP number | 1 |
| HDMI connector | Yes |
| Výkon napájecího zdroje (W) | 150 |
| Paměť - velikost (GB) | bez RAM |
| Typ paměti | DDR5 |
| Rozměry paměti | SODIMM |
| Paměť Intel Optane | Ne |
| Paměť - počet slotů celkem | 2 |
| Paměť - rychlost | 4800 |
| Disk - typ | Bez disku |
| Optická mechanika | Ne |
| Čtečka karet | Ne |
| Grafická karta | integrovaná |
| Thunderbolt 3 (kompatibilní) | Ano |
| eSATA | Ne |
| Výstup VGA | Ne |
| Výstup DVI | Ne |
| Výstup mini/micro HDMI | Ne |
| Výstup mini DisplayPort | Ne |
| Sériový port | Ne |
| Konektor RJ45 | Ano |
| Bluetooth | Ano |
| Wi-Fi | Ano |
| TPM 2.0 | Ano |
| Provedení | Mini PC |
| Typ SSD | M.2 2280 |
| Rozhraní SSD | PCI-Express NVMe |
| Operační systém | bez operačního systému |
| Ethernet | 2,5 Gbs |
| Počet LAN portů | 1 |
| Zabezpečení zámkem | Kensington Lock |
| Klávesnice | Ne |
| Myš | Ne |
| USB 2.0 (přední) | 0 ks |
| USB 3.x (přední) | 2 ks |
| USB 3.x Type-C (přední) | 0 ks |
| USB 4 / Thunderbolt 4 (přední) | 1 ks |
| USB 2.0 (zadní) | 0 ks |
| USB 3.x (zadní) | 3 ks |
| USB 3.x Type-C (zadní) | 0 ks |
| USB 4 / Thunderbolt 4 (zadní) | 1 ks |
| HDMI (počet) | 2 ks |
| mini/micro HDMI (počet) | 0 ks |
| DVI (počet) | 0 ks |
| VGA (počet) | 0 ks |
| Konfigurovatelný port | Ano |
| PS/2 (zadní) | 0 ks |
| Audio 3,5mm jack | Ano |
| Modelová řada GPU | AMD Radeon 680M Graphics |
| Max.frekvence jádra CPU (GHz) | 4,75 |
| Bluetooth verze | 05.II |
| Wi-Fi standard | Wi-Fi 6E 802.11ax |
| Barva | Černá |
ASUS PN53
Model: ASUS PN53
Form Factor: MiniPC
Operating System: No operating system
Processor: AMD Ryzen 7 7735H Processor 3.2GHz (16M Cache, up to 4.75GHz)
Hard Drive: without hard drive
Storage Support:
*2x M.2 2280, up to PCIe Gen4x4, 256G~2TB SSD NVMe
*1x 2.5”7mm SATA6Gb/s 1TB HDD, 7200 rpm
Optical Drive: none
Graphics Card: AMD Radeon Graphics
Memory: no RAM
Max. size: 2 x SO-DIMM, DDR5-4800MHz memory, max 64 GB (2*32GB)
Number of slots (total / Free): 2/2
Network: 2.5G LAN, Realtek RTL8125B-CG
Wireless Communication: Wi-Fi 6E, Bluetooth 5.2, 2*2
Rear connectors:
*1x USB 4 Type-C (w/ DP output, PD power input)
*3x USB 3.2 Gen1
*2x HDMI 2.1
*1x Configurable Port - Display Port 1.4
*1x 2.5G RJ45 LAN
*1x DC-in
*1x Padlock ring
Front/side connectors:
*1x USB 4 Type-C (w/ DP output)
*2x USB 3.2 Gen1
*1x Audio Jack (Line out/ Mic in/ Headphone out)
*1x Kensington Lock
Memory Card Reader: no
Dimensions: 120 x 130 x 58 mm
Weight: 0.9 kg
Power Supply: 20Vdc, 7.5A 150W Power Adapter
Keyboard: no
Mouse: no
Warranty: 3 years
Three-year premium ASUS Pick-up and Return warranty for both business and private individuals FREE.
For details, see here:https://www.Asus.com/cz/event/bezstarostny_servis
Manufacturer's website: https://www.Asus.com/displays-desktops/mini-pcs/pn-series/asus-expertcenter-pn53/
You can find the offer of compatible extensions to the standard warranty in the related products.
The VESA mount is included in the package.
Tested compatible memory is listed on the manufacturer's website
Everything about AMD processors here: https://amd.atcomp.cz
