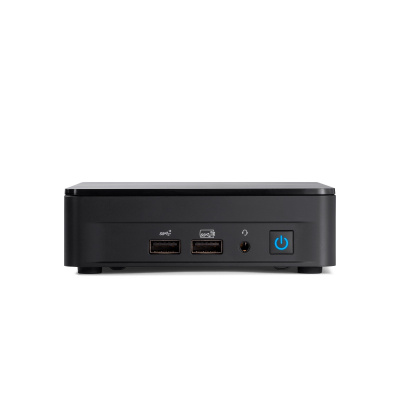

Product description ASUS NUC 13 Pro Mini 90AR0031-M00040 Computer Mini, NUC13ANKi3, i3-1315U, without RAM, UHD, without OS, 3R
| Manufacturer | INTEL |
| CPU Type | Intel Core i3 |
| CPU Generation | Intel 13. generation |
| Exact model | i3-1315U |
| BasicCPU core frequency (GHz) | 1,2 |
| Number of cores | 6 |
| Exact capacity (GB) | 64GB and less |
| VESA standard | Yes |
| DisplayPort connector | No |
| HDMI connector | Yes |
| Memory - size (GB) | without RAM |
| Memory type | DDR4 |
| Memory dimensions | SODIMM |
| Memory - total number of slots | 2 |
| Memory - number of free slots | 2 |
| Memory - speed | 3200 |
| Disk - type | Without a disk |
| Optical mechanics | No |
| Card reader | No |
| Graphics card | integrated |
| Thunderbolt 3 (compatible) | Yes |
| eSATA | No |
| VGA output | No |
| DVI output | No |
| Mini/Micro HDMI output | No |
| Mini DisplayPort output | No |
| Serial port | No |
| RJ45 connector | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Execution | Mini PC |
| SSD type | M.2 2280 |
| SSD interface | PCI-Express NVMe |
| Operating system | without an operating system |
| Ethernet | 2.5 Gbps |
| Number of LAN ports | 1 |
| USB 2.0 (front) | 0 pcs |
| USB 3.x (front) | 2 pcs |
| USB 3.x Type-C (front) | 0 pcs |
| USB 4 / Thunderbolt 4 (front) | 0 pcs |
| USB 2.0 (rear) | 0 pcs |
| USB 3.x (rear) | 2 pcs |
| USB 3.x Type-C (rear) | 0 pcs |
| USB 4 / Thunderbolt 4 (rear) | 2 pcs |
| HDMI (quantity) | 2 pcs |
| mini/micro HDMI (quantity) | 0 pcs |
| DVI (quantity) | 0 pcs |
| VGA (quantity) | 0 pcs |
| PS/2 (rear) | 0 pcs |
| 3.5 mm audio jack | Yes |
| GPU model series | Intel Iris/Intel UHD Graphics |
| Max.CPU core frequency (GHz) | 4,5 |
| CPU with AI support | No |
| Bluetooth version | 05.III |
| Wi-Fi standard | Wi-Fi 6E 802.11ax |
| Color | Black |
| NPU - number of TOPs | Not supported |
ASUS NUC 13 Pro Kit (NUC13ANKi3)
Operating System: No
Processor: Intel Core i3-1315U (6 cores - 2P + 4E, 8 threads, P-core 1.2/4.5 GHz, E-core 0.9/3.3 GHz, 10 MB cache)
Memory: No
Maximum Memory Size: 64GB
Memory Type: DDR4-3200 1.2V SO-DIMM
Number of Slots (Total/Free): 2 slots (2/2)
Hard Drive: No
Internal Drive Bay: 1x M.2 2280 PCIe Gen4x4 SSD + 1x M.2 2242 SATA SSD
Graphics Card: Integrated Intel UHD Graphics 64EU
Audio: Realtek via 3.5mm stereo headphone jack, support for 4 HD audio streams via 4 digital ports (via HDMI and DP)
Network: 1x Intel® I226V, 2.5G LAN
Wireless Communication: WLAN + Bluetooth (Intel® Wi-Fi 6E + Bluetooth® 5.2)
Power Supply: 90W power adapter
Front and Side Ports:
* 2x USB 3.2 Gen2 type A (1x charging)
* 1x audio jack (line out/microphone in/headphone out)
* 1x Kensington Lock (left side of chassis) + Cable Locking Arm
Rear ports:
* 2x Thunderbolt™ 4 (5V/3A, 40Gb/s)
* 1x USB 3.2 Gen2 Type A (5V/0.9A, 10Gb/s)
* 1x USB 2.0 (5V/0.5A)
* 2x HDMI 2.1 (up to 4K@60Hz)
* 1x 2.5G RJ45 LAN
* 1x DC-in
Dimensions: 117x112x37mm
Weight: 510g
Accessories:
* power adapter
* power cable
* information leaflet
* warranty card
* VESA mount
Warranty: 3 years
Tested compatible memory is listed on the manufacturer's website
