Product description ASUS ExpertCenter D701MERES Mini TWR D701MERES-314100003X Computer Mini, i3-14100, 16GB, 512GB, UHD 730, W11P, 3R
| Výrobce | INTEL |
| Typ CPU | Intel Core i3 |
| Generace CPU | Intel 14. generace |
| Přesný model | i3-14100 |
| Zákl.frekvence jádra CPU (GHz) | 3,5 |
| Počet jader | 4 |
| Kapacita přesná (GB) | 512GB |
| DisplayPort connector | Yes |
| DP number | 1 |
| HDMI connector | Yes |
| Paměť - velikost (GB) | 16 |
| Typ paměti | DDR5 |
| Rozměry paměti | UDIMM |
| Paměť - počet slotů celkem | 4 |
| Paměť - rychlost | 5600 |
| Disk - typ | SSD |
| Optická mechanika | Ano |
| Čtečka karet | Ne |
| Grafická karta | integrovaná |
| Thunderbolt 3 (kompatibilní) | Ne |
| eSATA | Ne |
| Výstup VGA | Ano |
| Výstup DVI | Ne |
| Výstup mini/micro HDMI | Ne |
| Výstup mini DisplayPort | Ne |
| Sériový port | Ne |
| Konektor RJ45 | Ano |
| Bluetooth | Ano |
| Wi-Fi | Ano |
| MS Office | Ano |
| Provedení | MiniTower |
| Typ SSD | M.2 2280 |
| Rozhraní SSD | PCI-Express NVMe |
| Operační systém | Windows 11 Pro |
| Ethernet | 1 Gbs |
| Počet LAN portů | 1 |
| Klávesnice | Drátová |
| Myš | Drátová |
| USB 2.0 (přední) | 2 ks |
| USB 3.x (přední) | 2 ks |
| USB 3.x Type-C (přední) | 1 ks |
| USB 4 / Thunderbolt 4 (přední) | 0 ks |
| USB 2.0 (zadní) | 3 ks |
| USB 3.x (zadní) | 2 ks |
| USB 3.x Type-C (zadní) | 0 ks |
| USB 4 / Thunderbolt 4 (zadní) | 0 ks |
| HDMI (počet) | 1 ks |
| mini/micro HDMI (počet) | 0 ks |
| DVI (počet) | 0 ks |
| VGA (počet) | 1 ks |
| PS/2 (zadní) | 0 ks |
| Audio 3,5mm jack | Ano |
| Modelová řada GPU | Intel Iris/Intel UHD Graphics |
| Max.frekvence jádra CPU (GHz) | 4,7 |
| CPU s podporou AI | Ne |
| Bluetooth verze | 05.III |
| Wi-Fi standard | Wi-Fi 6E 802.11ax |
| Barva | Černá |
| MS GamePass Trial | Ne |
| Thunderbolt 5 (přední) | 0 ks |
| Thunderbolt 5 (zadní) | 0 ks |
| NPU - počet TOPs | Nepodporuje |

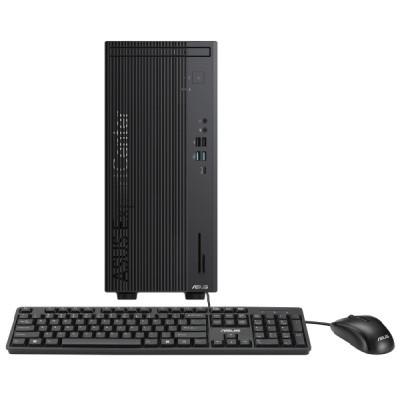

ASUS ExpertCenter D7 Mini Tower (D701MERES-314100003X)
* Microsoft Copilot
Design: mini tower (15l)
Operating System: Windows 11 Pro
Processor: Intel Core i3-14100 (4 cores, 8 threads, 3.5/4.7 GHz, 12 MB cache)
Memory: 16GB DDR5
Number of slots: 4 DDR4 UDIMM slots with dual-channel support
Maximum memory size: 128GB DDR5
Hard drive: 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
Optical Drive: DVD writer 8X
Memory Card Reader: no
Smart Card Reader: no
Graphics Card: Integrated Intel UHD Graphics 730
Network: Intel WGI219V 10/100/1000 Mb/s, non-vPro
Wireless Communication: WLAN + Bluetooth (Wi-Fi 6E 802.11ax Dual band 2*2 + Bluetooth® 5.3 Wireless Card)
Keyboard: usb
Mouse: optical usb
Front ports:
* 1x headphone jack 3.5mm
* 1x 3.5mm combo audio jack
* 2x USB 2.0 type A
* 1x USB 3.2 Gen 2 Type C
* 2x USB 3.2 Gen 2 Type A
Rear Ports:
* 1x RJ45 Gigabit Ethernet
* 1x HDMI 1.4
* 1x VGA
* 1x Displayport 1.4
* 3x 3.5mm audio jack
* 1x Kensington lock slot
* 1x Padlock loop
* 3x USB 2.0 type A
* 2x USB 3.2 Gen 1 Type A
* 1x FLEX I/O port (DP1.4 HBR3)
* 1x power connector
Color: black
Dimensions: 155x296x347mm
Weight: 6kg
Accessories:
* audio card module
* 1x COM port
* security (Intrusion) cable
Warranty: 3 years
Three-year premium ASUS Pick-up and Return warranty for both business and private individuals FREE.
For details, see here: https://www.Asus.com/cz/event/bezstarostny_servis
Manufacturer's website: https://www.Asus.com/displays-desktops/tower-pcs/expertcenter/asus-expertcenter-d7-mini-tower-d701mer/
You can find the offer of compatible extensions to the standard warranty in the related products.
